Impression Rail Express®
Details
Superior Durability
Made from high-performance powder-coated aluminum that resists corrosion, fading, staining, and scratching.
Moisture Resistant
Resists rotting, cracking, and corrosion.
Low Maintenance
Never sand, stain, or seal your railing again.
Better Views
Enjoy less obstructed sightlines with narrow balusters.
Easy Install
The panelized railing system allows for a quick installation (no fastening of individual balusters).
Best Warranties
Enjoy peace of mind with a 25-Year Limited Product Warranty.
Options and Dimensions

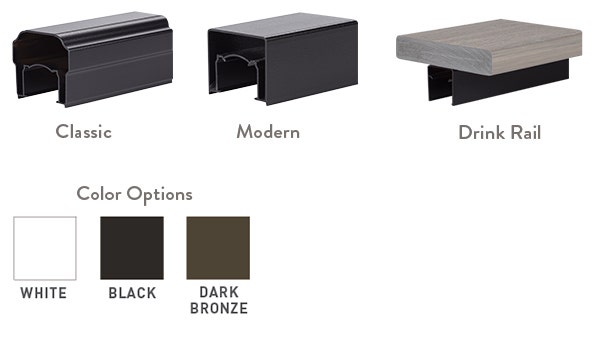

Top Rail Options (sold separately)
– Classic Top Rail
– Modern Top Rail
– Drink Rail (uses deck board as top rail)
Panel lengths:
– 6′ Panels = 69.43″
– 8′ Panels = 91.31″
Top Rail Lengths:
– 6′ Panels = 69.43″
– 8′ Panels = 91.31″
– 18′ = 216″

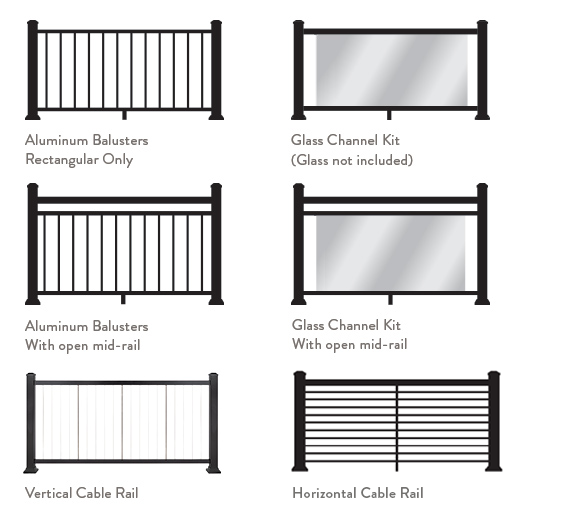

Infill Options
– Rectangular aluminum baluster
– Aluminum balusters with mid-rail
– Glass Channel Kit (glass not included and is not compatible with Drink Rail)
– Glass Channel Kit with mid-rail (glass not included and is not compatible with Drink Rail)
– Horizontal Cable Rail

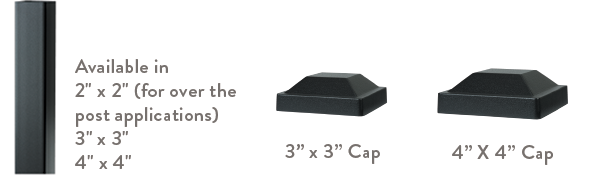

Posts, Post Caps, and Post Skirts
– Available in White, Black, and Dark Bronze
– Available in 2″ × 2″, 3″× 3″,and 4″× 4″
2" x 2" Post (For over the post applications ONLY - No caps available)
– Height options
– 33.6″ (for top rail over the post 36″ rail height and 8′ length stair sections for 36″ height)
– 39.6″ (for top rail over the post 42″ rail height)
3" x 3" Post
– Aluminum post skirt available
– Height options
– 38″ (36″ railing)
– 43.5″ (42″ railing/36″ stair)
– 48″ (42″ stair)
Fascia Mount Brackets and 3″ × 3″ Post Kits
(Brackets available for inside corners, outside corners and straight runs)
Accessories
– Decorative Collars — optional cover for cut railing ends
– Post Insert for Over-The-Post Drink Rail
– Gate Kit
– Lighting
Installation & Warranty
Questions About Installation?
We’re here to assist you with videos, guides, and more. View Installation Help.
Warranty Coverage
TimberTech Railing is engineered the right way — to last. Coverage includes a 25-Year Limited Warranty. See full warranty details.
Impression Rail Express® Railing System
See how the components come together.
What Defines Impression Rail Express®?
Sleek, Versatile Design
Wrought iron-inspired, this timeless metal railing pairs well with a variety of outdoor design schemes.
Variety & Value
With multiple top rail and infill options, you can design the right look for your space — at the right price.
Easy Installation
Thanks to a panelized system that requires no special tools and features easy-to-align balusters.
Frequently Asked Questions
Why are the Impression Rail Express® Panels 69.43" and 91.31" and not a full 6' and 8'?
The panels are sold as 6-foot and 8-foot Universal Panels, but the actual baluster panel measures slightly shorter than the full nominal length. That's by design.
The ""missing"" length accounts for real-world installation:
- Post width takes up space at each end of the run.
- Brackets and hardware need room to connect the panel to your posts.
- Proper spacing keeps the finished section square and secure.
So when you frame your posts on standard centers, the 6-foot and 8-foot panels drop right into place with the correct gaps.
What is the actual length of Impression Rail Express®?
Impression Rail Express® comes in two panel sizes to fit your layout:
6-foot Universal Panel (15 balusters) at 69.43"" each
8-foot Universal Panel (20 balusters) at 91.31"" each
You can also choose between two rail heights, 36 inches and 42 inches, to match local code and your design. Keep in mind that the 42-inch vertical cable panels are residential only. Post kits come in 36-inch, 42-inch, and 52-inch heights.
Impression Rail Express® works with a range of TimberTech metal rail lighting, so you can add ambiance and improve safety after dark. Compatible options include:
- 3" LED Lantern Post Cap Light
- Perimeter Light Post Cap
- Indirect (Hidden/Concealed) Down Light Post Cap
- Small Accent Light
- 3" Post Cap Light
These lights come in finishes like White, Black, and Dark Bronze to blend right in with your railing. The 3" Post Cap Light even installs with any IRX post cap, with no color matching needed.
Yes. Drink Rail is one of three top rail designs available with Impression Rail Express®, and it's a favorite for entertaining. It gives you a wide, flat surface, perfect for setting down a drink or a plate while you take in the view.
Here are the three top rail options:
Classic
Modern
Drink Rail
Yes. Impression Rail Express® is made from durable, non-combustible aluminum, which makes it a smart, low-maintenance choice for waterfront settings like lakefronts and poolside.
For salt-water and coastal projects, a few smart steps go a long way:
- Always check local code requirements for coastal applications
- Use corrosion-resistant hardware suited to salt air and spray
- Keep in mind that the TimberTech Limited Warranty does not cover exposure to corrosive elements
Impression Rail Express® uses a panelized system that makes installation straightforward.
Included in a Universal Panel:
Baluster panel (15 balusters for 6-foot; 20 balusters for 8-foot)
Bottom rail
Decorative collars
Bracket hardware
One important note: the top rail is not included with the panel. Stair panels include the baluster panel, bottom rail, and bracket hardware.
Ordered separately:
Top rails (Classic, Modern, or Drink Rail)
Posts and post kits (3" post kits include the cap and skirt; 4" post kits include a bracket to run rail over the post, plus skirts)
Lighting
Gate kits (include the panel, top and bottom channel covers, and a latch and hinge kit, for openings up to 50 inches)
Glass (tempered glass is sourced separately)
Impression Rail Express® comes in three versatile colors to suit a range of styles:
White
Black
Dark Bronze
As with any building product, local inventory can vary by color, length, and distributor demand. For exact regional availability and lead times, check with a local TimberTech dealer before finalizing your build.
