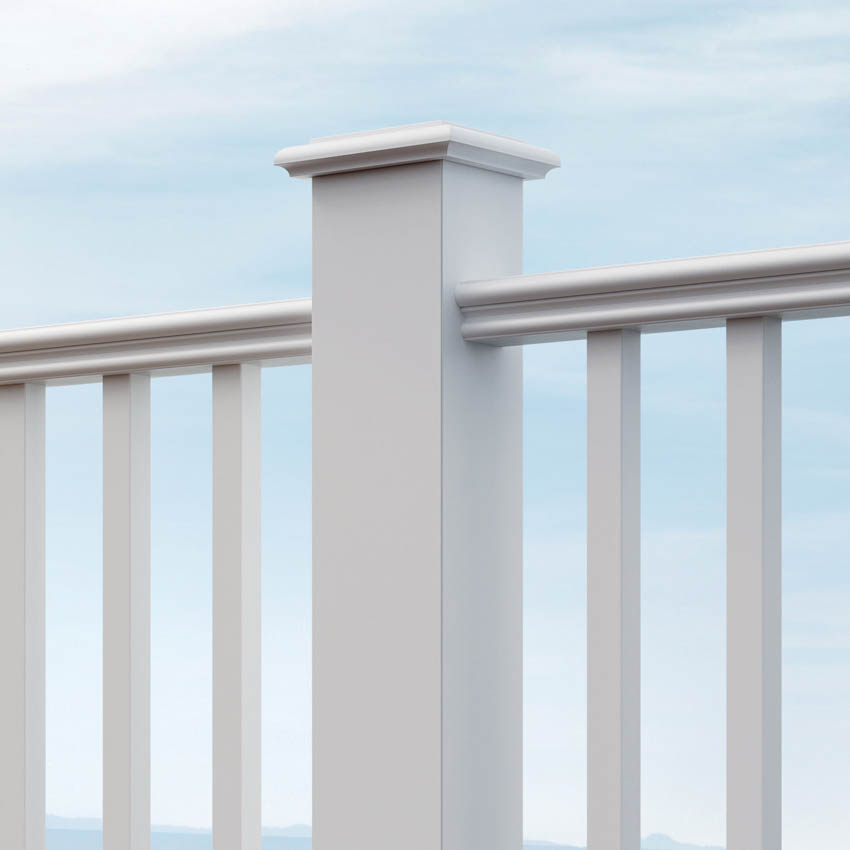

Pinnacle Rail™

Details

Strong And Durable

Made from extruded PVC and reinforced with aluminum for exceptional strength and durability.

Low Maintenance

Never requires sanding, staining, or sealing — ever.

Long-Lasting Beauty

Resistant to cracking, chipping​, rotting, swelling, fading, and splitting. Protected by a 25-Year Limited Product Warranty.

Elevated Design

Traditional milled-wood-inspired look with sharp corners and tight, clean lines.​​

Easily Customizable

Choose from infill upgrades such as black aluminum balusters and decorative panels.

Weather-Resistance

Highly moisture-resistant for no mold, mildew, or rot damage.

Lightweight
Lightweight​ material for easier handling​.
Seamless Appearance
Discreet stainless steel hidden fastener design ensures a sleek, seamless look.

Options and Dimensions

Pinnacle Rail™ Kits

Includes: 3-1/2″ Rail Kit with reinforcements, 13″ solid balusters for 6′ or 18′ solid balusters for 8′, hardware, and footblocks
– Section Size Options: 6′ and 8′ sections
– Colors: White

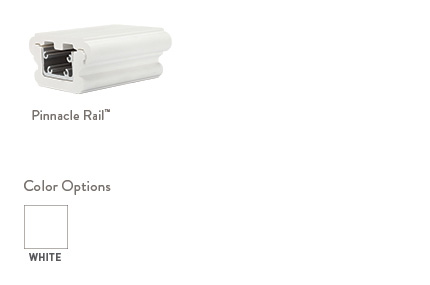

Top Rail Options for Pinnacle Rail™

• Actual dimensions: 3.5″ x 1.875″
• Lengths available: 6′ and 8′
• Available in White
• Screw-together rail system allows for custom baluster spacing and delivers a rigid fit

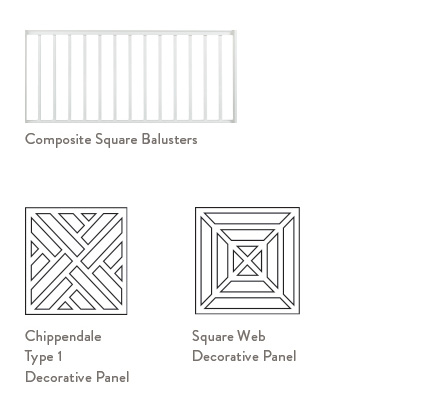

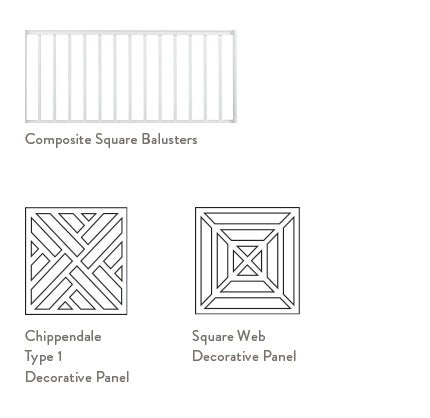

Infill Options for Pinnacle Rail™

• Solid square PVC balusters
• Chippendale type 1 decorative panel (36″ and 42″)
• Square web decorative panel (36″ and 42″)

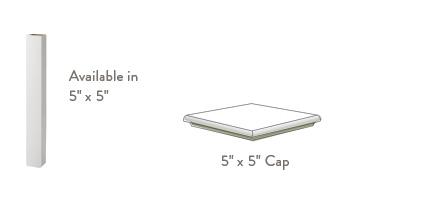

Post Sleeves, Post Caps, and Post Skirt Options for Pinnacle Rail™ systems

• All available in White
• 5″ sq. ft. x 48″ post sleeve, 3/8″ wall with adjustable shims
• 5″ sq. ft. x 108″ post sleeve, 3/8″ wall with adjustable shims
• 1″ x 6-3/4″ plain flat post cap to fit 5″ sq. ft. post sleeve
• Base post skirt ring for 5″ extruded post sleeve

Accessories

Rail Gate Kit

Beautiful, sturdy PVC gates reinforced with aluminum and featuring a latch system. Crafted with no open cells. Available for 36″ and 42″ wide openings.

Rail Lighting

Compatible with most rail lighting options for composite rail, bringing warmth and life to your design.

Installation & Warranty

Questions About Installation?

We’re here to assist you with videos, guides, and more. View Installation Help.

Warranty Coverage

TimberTech PVC railing is engineered the right way — to last. Coverage includes a 25-Year Limited Product Warranty. See full warranty details.

Pinnacle Railing System

See how the components come together.

Step 1: Select Top Rail
Step 2: Select Infill
Step 3: Select Post Sleeves and Caps​
https://main--timbertech-eds-website--jhbp-github.aem.live/fragments/wheretofind

Frequently Asked Questions

What is the actual length of TimberTech Pinnacle Railing?

Pinnacle Rail® comes in two panel sizes to fit a range of layouts:

6 feet

8 feet

You can also choose between two rail heights, 36 inches and 42 inches, so you can match local code and your design. Pinnacle Rail ™ actual lengths are out of the box to be cut down for an on-center measurement depending on the post sleeve dimension and/or stair angle.

Pinnacle Level 6′ and 8′ sections (72″ and 96″)

Pinnacle Stair 6′ and 8′ sections (72″ and 96″)

Is Drink Rail compatible with Pinnacle Railing?
Pinnacle Rail® is built around a single, wide, flat top rail with a milled-wood-inspired look. That broad, flat surface already gives you a handy spot to rest a drink or a plate while you enjoy the view, so it delivers a similar everyday benefit to a dedicated Drink Rail.
Which decking collections are compatible with Pinnacle Railing?
Good news: Pinnacle Rail® pairs with every TimberTech Decking collection. Whether you're building with Advanced PVC or Composite boards, this PVC railing works with your deck.
Which lighting options are compatible with Pinnacle Railing?
Pinnacle Rail® can be paired with TimberTech deck and rail lighting to add ambiance and help improve visibility after dark.
Can Pinnacle Railing be used near water? Near salt water?

Yes. Pinnacle Rail® is made from durable, low-maintenance PVC with an aluminum-reinforced core, a combination that's a smart fit for waterfront settings like lakefronts and poolside.

For salt-water and coastal projects, a few smart steps go a long way:

- Always check local code requirements for coastal applications

- Use corrosion-resistant hardware suited to salt air and spray

- Keep in mind that the TimberTech Limited Warranty does not cover exposure to corrosive elements

What colors are widely available? Are there local exclusions?

Pinnacle Rail® comes in one clean, versatile color:

White

As with any building product, local inventory can vary by length and distributor demand. For exact regional availability and lead times, check with a local TimberTech dealer before finalizing your build.

What is included in a railing kit vs. what I need to order separately?

Pinnacle Rail® makes installation simple. Here's the breakdown.

Included in a Pinnacle Series Rail Kit:

3-1/2" rail with reinforcements

Balusters (13 for a 6-foot kit; 18 for an 8-foot kit)

Hardware and footblocks

Kits are available in both level and stair configurations, in 36-inch and 42-inch heights. Infill options include Solid Square Balusters, the Chippendale Panel, and the Square Web Panel.

Ordered separately:

Decorative panels (Chippendale and Square Web)

Bracket kits (level and stair)

Gate kits

Post sleeves, post caps, and post skirts
