Deck Board Spacing for TimberTech Decking: What to Know

August 4, 2021
HomeOutdoor Living IdeasDeck Board Spacing for TimberTech Decking: What to Know

If you’re DIYing your deck build, it’s important to understand deck board spacing requirements for your chosen deck material. Deck board spacing refers to the gap between the sides of the deck boards and between the ends of the deck boards.

Why Proper Deck Board Spacing Is Important


Spacing recommendations are not universal — they vary between decking material due to how different materials expand and contract.

Board expansion and contraction affect deck board spacing

Expansion & Contraction of Common Deck Materials

The most common types of decking material expand and contract in different directions:

  • Traditional wood expands along its width.
  • Capped polymer and capped composite decking expands along its length.

Now that you understand the importance of deck board spacing, you’re ready to dive into the recommendations for TimberTech® decking in comparison to traditional lumber.

NEED THE 411 ON ALL THINGS DECK BOARDS?
Get the insight you need on everything you need, from types of composite decking to budgeting your project.
EXPLORE THE DECKING SERIES

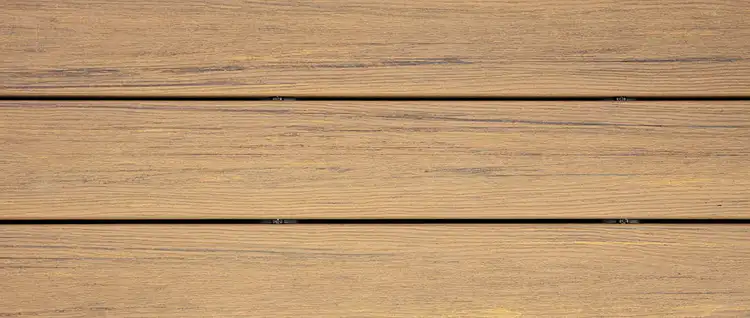

Side-To-Side Deck Board Spacing

Side-to-side deck board spacing recommendations

Side-to-side spacing refers to the gap between the length of the boards.

Deck board spacing recommendation for wood decking

Side-to-Side Spacing With Traditional Wood

Traditional wood decking is typically installed with a 1/8” gap, as long as you install the boards after they have dried out and acclimated to your local climate. If installing freshly treated wood, install it tight (no gap) to allow for the shrinkage.

It’s typically a good idea to let your wood boards sit out in a dry area for one to two weeks before installing them to allow for proper acclimation.

Side-to-Side Spacing With TimberTech Decking

TimberTech capped polymer and capped composite decking will not shrink side-to-side at all after installation, so it’s essential to get the correct spacing right at the time of install.

Factors That Affect Side-to-Side Spacing With TimberTech Decking

Side-to-Side Spacing Recommendations by TimberTech Decking Line

The decking line and board profile and shoulder type you choose will influence which fastener options you’ll be able to use.

Deck board spacing recommendation for TimberTech capped polymer decking

TimberTech Capped Polymer Decking

TimberTech AZEK® capped polymer decking spacing requirement:

A minimum of 1/8” to 1/4” side-to-side gap between the boards, depending on which fastener you use.

Deck board spacing recommendation for TimberTech capped composite decking

TimberTech Capped Composite Decking

TimberTech PRO® and TimberTech EDGE® capped composite decking spacing requirement:

A minimum of 1/8” to a maximum of 3/16” side-to-side gap, depending on which fastener you use.

No-Stress Spacing

Use our deck spacer tool for an even easier deck installation.

Board profile and shoulder type affect which fasteners you can use

What Is Board Profile & Shoulder Type?

The board profile has to do with how the underside of the board looks. There are two board profile options:

  • Full profile (pictured)
  • Scalloped

The board shoulder type has to do with how the sides of the board look. There are two shoulder options:

  • Square shoulder
  • Grooved (pictured)

Side-to-Side Spacing Recommendations by Fastener Type

Once you’ve chosen your decking line and board type, you’re ready to choose your fastener type. Fasteners can be either top-down fasteners or hidden clip fasteners, and certain fasteners are only compatible with certain board profiles and shoulder types.

TimberTech Deck Board Spacing Side by Side Comparison Chart

NEED TO CALCULATE HOW MUCH DECKING YOU’LL NEED?
The side-to-side deck board spacing gap you go with is essential in calculating how much decking you’ll need for your build. LEARN MORE

Curated Deck Board & Fastener Pairings

If you’re uncertain about which deck boards and fasteners go together, we’ve got a cheat-sheet for you. Check out these curated pairings for a winning combination.

Cortex hidden fastener application with plastic-tipped hammer

TimberTech AZEK With Cortex® Hidden Fasteners

Cortex top-down fasteners are hidden with plugs made of TimberTech deck boards for a refined, seamless deck surface.

TOPLoc top-down fastener application with a drill

TimberTech AZEK With TOPLoc® Color-Matched Screws

TOPLoc top-down fasteners are color-matched screws that blend into your deck surface for a polished look.

CONCEALoc hidden clip fastener application with a drill

TimberTech PRO & EDGE With CONCEALoc® Hidden Fasteners

CONCEALoc hidden fasteners are installed between grooved boards, giving you a fastener-free surface.

WANT DECK BOARD SPACING HELP?
We have your back. Work with a TimberTech-registered contractor and get your job done right. FIND A CONTRACTOR

End-to-End Deck Board Spacing

End-to-end deck board spacing recommendations



End-to-end deck board spacing refers to the spacing — if any — between two ends of a board that meet, called a butt joint.

Traditional wood decking is often installed with no gap between the ends of the boards because wood primarily expands along its width, so there is little risk of buckling at butt joints.

As you’ll recall, TimberTech decking expands and contracts along its length, so proper end-to-end spacing is critical. The end-to-end deck board spacing recommendations depend on which TimberTech product line you choose.

End-to-End Spacing Recommendations by Decking Lines

For TimberTech Capped Polymer Decking

TimberTech AZEK decking does not require an end-to-end spacing gap, just like traditional wood. This is because of its unique material makeup, which won’t buckle due to expansion with a tight install.*

For TimberTech Capped Composite Decking

TimberTech PRO® and TimberTech EDGE® do have specific end-to-end spacing requirements.

The spacing you’ll need to account for will depend on the outdoor temperature at the time of installation.

*Be sure to keep TimberTech AZEK decking as cool as possible during installation to avoid changes in length.

TimberTech Butt Joint Gapping Requirements Chart

Choose the Right Material for Your Build

Discover your DIY decking material options to get the look you want with the installation you’re most comfortable with.

Water Drainage & Airflow

Besides accommodating expansion and contraction of the boards, deck board spacing also helps with water drainage and airflow — which is especially important for traditional wood decks.

Improper deck board spacing can cause issues with wood decking

Drainage & Airflow Concerns for Wood Decks

For a traditional wood deck, insufficient gapping can increase the chance of moisture damage to the deck surface and substructure, which can cause issues like:

Improper deck board spacing can affect a deck substructure

Drainage & Airflow Concerns for Composite Decks

For a TimberTech composite deck, there’s little concern of moisture damage to the surface of the deck. However, insufficient gapping can cause moisture build-up on the traditional wood substructure, which could cause issues to your deck’s structural integrity. Maintain at least a 1 ½” space below the deck boards to allow for airflow.

Get More DIY Guidance

Get more DIY deck build guidance

Now that you have a firm understanding of deck board spacing, you’re ready to explore more resources to complete a successful DIY build you can be proud of.

Explore the Deck Building Resource Center for more installation insight with easy-to-follow videos, step-by-step installation guides, and more helpful DIY considerations to guide you.

Get the DIY Insight to Do Your Project Right

Dive into our Deck Building Resource Center for easy-to-follow tips, guided install videos, and more.
